In the precision-driven world of spring manufacturing, achieving exact specifications isn’t always possible through initial production processes alone. Even after careful coiling and grinding operations, compression springs may require fine-tuning to meet stringent quality standards. This is where the spring correction process becomes an indispensable part of quality manufacturing.
At Cixi Dili Spring Co., Ltd., we understand that producing high-performance springs—whether JIS standard mold springs, torsion springs, or custom-designed compression springs—demands meticulous attention to detail at every stage. Today, we’re pulling back the curtain on one of the most critical yet often overlooked aspects of spring manufacturing: the correction and calibration process.
Understanding Spring Correction in Manufacturing
Spring correction (also known as spring calibration or adjustment) is a specialized post-production process designed to fine-tune a spring’s physical parameters when they deviate from specified tolerances. After the grinding process completes the basic formation of a helical compression spring, dimensions such as:
- Free height (overall length)
- Outer diameter (OD)
- Pitch (distance between coils)
- Perpendicularity (vertical alignment)
…may not perfectly align with the design drawings or customer specifications. When these deviations exceed acceptable tolerances, correction procedures become necessary to ensure the spring performs exactly as intended in its final application.
This process is particularly crucial for springs used in precision mold applications, automotive suspension systems, industrial machinery, and aerospace applications, where even minute dimensional variations can affect performance, safety, and longevity.
The Science Behind Spring Correction Process
Spring correction leverages the principle of controlled plastic deformation. When a spring’s dimensions deviate from specifications, specialized tools apply localized pressure to specific areas of the spring, causing permanent deformation that brings the parameters back within acceptable tolerances.
Material Behavior During Correction
Spring steels—including music wire (ASTM A228), oil-tempered wire (ASTM A229), chrome silicon alloy (JIS SUP12), and stainless steel variants (AISI 302/304/316)—exhibit both elastic and plastic properties. During correction:
- Elastic deformation occurs first, where the material temporarily changes shape under load
- Plastic deformation follows when the applied stress exceeds the material’s yield strength
- The material retains the new shape after the correcting force is removed
This controlled plastic deformation is what allows manufacturers to achieve the precision required by modern engineering applications.
Key Parameters Requiring Correction
Outer Diameter (OD): When the coiling ratio (D/d, where D is mean diameter and d is wire diameter) is too large, or when specifications demand exceptionally tight OD tolerances, correction ensures the spring fits properly in its housing or guide.
Pitch and Free Height: Critical for springs where consistent compression characteristics and specific installed heights are non-negotiable requirements.
Perpendicularity: Essential for springs that must sit flat on mounting surfaces and compress uniformly without tilting or binding.
Grinding Precision: Refines the surface finish and dimensional accuracy of the spring ends.
When Does a Spring Need Correction?
Not every spring requires correction—in fact, minimizing the need for this process is a hallmark of advanced manufacturing capability. However, correction becomes necessary under specific circumstances:
Scenario 1: Excessive Coiling Ratio
When the relationship between the spring’s mean diameter and wire diameter creates a high coiling ratio, the spring may naturally exhibit outer diameter variations that exceed standard tolerances. In such cases, especially when customer specifications are strict, correction is essential.
Scenario 2: Critical Pitch Requirements
When pitch consistency is a primary acceptance criterion (common in precision instrumentation springs), and the free height cannot be guaranteed through grinding alone, correction adjusts individual coil spacing.
Scenario 3: High Perpendicularity Standards
Applications requiring exceptional perpendicularity—such as JIS standard mold springs or springs in measurement devices—may demand correction when grinding operations cannot achieve the required verticality.
Scenario 4: Material Variability
Even with consistent manufacturing processes, natural variations in material properties (tensile strength, elastic modulus) can cause dimensional inconsistencies that necessitate individual spring correction.
Spring Correction Tools and Equipment
The correction process employs different tools depending on the wire diameter and the specific parameter being adjusted.
For Wire Diameter ≥ 4mm
Larger springs with wire diameters of 4mm or more typically require substantial corrective forces, necessitating mechanical equipment:
- Plate Presses: Apply controlled vertical pressure to adjust free height and perpendicularity
- Pitch Adjustment Machines: Specialized equipment that systematically adjusts coil spacing
- Hydraulic Presses: Provide precise, adjustable force for diameter and height corrections
- Custom Fixtures: Application-specific tooling designed for particular spring geometries
For Wire Diameter < 4mm
Smaller springs require more delicate correction approaches:
- Forming Dies with Shaped Edges: Precision tools with contoured surfaces that guide controlled deformation
- Specialized Pliers: Spring-specific pliers with shaped jaws that apply localized correction force

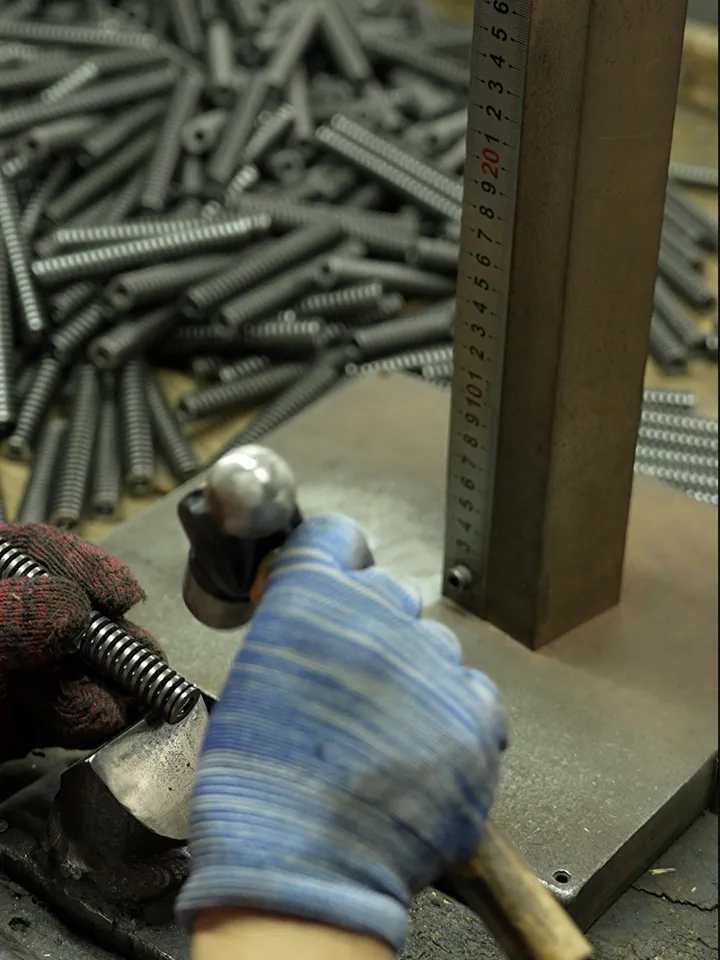

- Precision Hammers: Small hammers used with anvils or mandrels for targeted adjustments
- Mandrels and Arbors: Support tools that provide consistent internal diameter control during correction
Manual vs. Semi-Automated Correction
Most correction operations occur in semi-finished or manual working conditions, requiring skilled operators who combine technical knowledge with hands-on experience. This human element—the ability to assess, adjust, and verify—remains irreplaceable in achieving optimal results.
Professional Spring Correction Techniques: Expert Craftsmanship in Action
To truly understand the art and science of spring correction, seeing the process in action is invaluable. Our skilled technicians at DL Spring have perfected correction techniques through years of experience manufacturing precision springs for demanding applications worldwide.
Watch Our Expert Correction Process
In this exclusive video demonstration, observe how our craftsmen manually correct compression springs with exceptional precision and care:
In the video, you’ll see:
- Initial quality assessment: How we identify which parameters require correction
- Tool selection: Choosing the right correction tools for specific spring geometries
- Controlled application of corrective force: The delicate balance between sufficient deformation and avoiding damage
- Measurement verification: Continuous quality checking throughout the process
- Final inspection: Ensuring all parameters meet specifications
This hands-on approach, combining traditional craftsmanship with modern quality control methods, ensures that every spring leaving our facility meets or exceeds customer expectations.
Types of Spring Correction Applications
Let’s examine each correction type in detail:
6.1 Outer Diameter Correction
When it’s needed: When the wound diameter of the spring naturally falls outside specified tolerances, particularly in springs with challenging coiling ratios or when customers require exceptionally tight OD specifications (exceeding standard DIN, JIS, or ASTM tolerances).
Process: Specialized cone-shaped mandrels or expanding dies apply inward or outward pressure to adjust the diameter without significantly affecting other spring properties.
Tools used: Dedicated sizing fixtures, hydraulic presses with controlled expansion capabilities, and precision measuring instruments (calipers, micrometers, optical comparators).
6.2 Pitch and Height Adjustment
When it’s needed: When pitch consistency is the primary acceptance criterion, or when the free height achieved through grinding doesn’t meet specifications despite correct coiling.
Process: Individual coils or sections of coils are manipulated to increase or decrease spacing, bringing the overall free height and pitch uniformity within tolerance.
Tools used: Pitch adjustment machines for production volumes, specialized pliers and mandrels for custom or low-volume work.

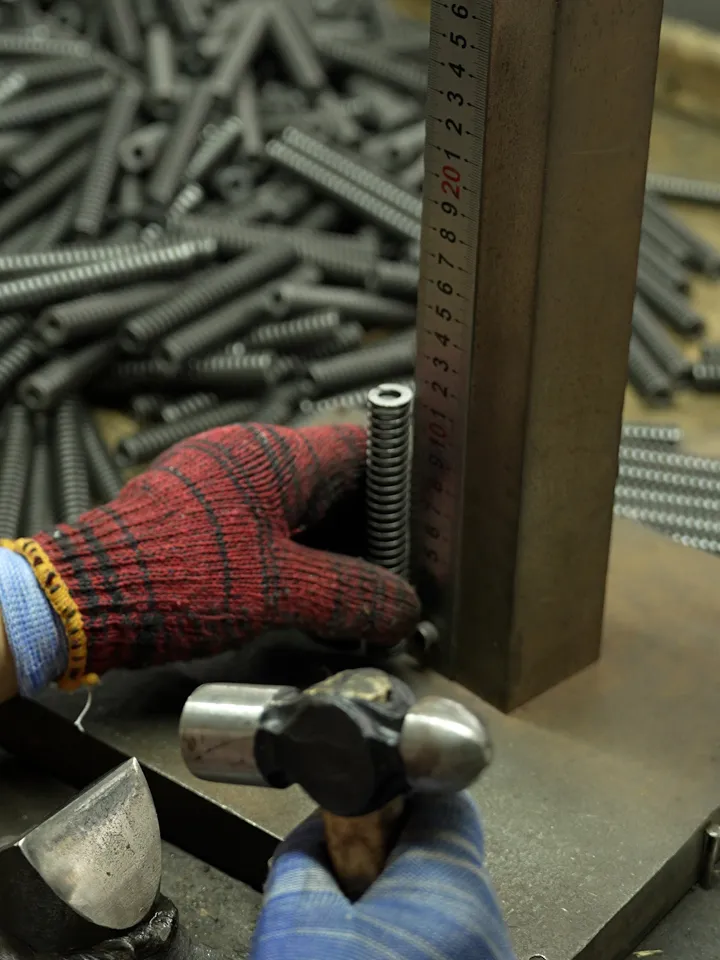

6.3 Perpendicularity Correction
When it’s needed: To achieve high-precision perpendicularity requirements that cannot be guaranteed through grinding alone—common in mold springs, precision instruments, and applications where uneven loading could cause premature failure.
Process: The spring is carefully examined to identify which areas contribute to the deviation from perpendicularity. Controlled pressure is applied to specific points, typically on the end coils, to bring the spring into proper vertical alignment.
Tools used: Flat pressing plates, perpendicularity gauges, surface plates, and indicator instruments.
6.4 Grinding Precision Enhancement
When it’s needed: When the ground end surfaces don’t fully meet flatness or parallelism requirements specified in the drawings.
Process: Although primarily addressed through grinding itself, minor corrections can refine the contact surface quality through controlled compression and stress relief.
Advantages and Limitations of Spring Correction
Like any manufacturing process, spring correction presents both benefits and drawbacks that must be carefully weighed.
Advantages:
✓ Enhanced Dimensional Accuracy: Correction enables manufacturers to achieve tighter tolerances than would be possible through coiling and grinding alone, opening possibilities for precision applications.
✓ Salvage of Near-Spec Springs: Springs that are marginally outside specifications can be corrected rather than scrapped, improving material utilization and reducing waste.
✓ Meeting Strict Customer Requirements: When customers demand tolerances beyond standard capabilities, correction makes these specifications achievable.
✓ Flexibility in Production: Correction provides a safeguard against natural process variations, ensuring consistent output quality even when material properties or environmental conditions vary.
Limitations and Considerations:
✗ Potential Impact on Fatigue Performance: The most significant concern with correction is its potential adverse effect on spring fatigue life. The plastic deformation introduces residual stresses and potentially creates weak points, particularly if correction is excessive or improperly executed.
✗ Increased Manufacturing Cost: Correction adds time, labor, and potentially additional heat treatment steps (stress relief), increasing the overall cost of production.
✗ Risk of Spring Damage: Overzealous correction can damage the spring coating, create surface defects, or even cause cracking in hardened materials.
✗ Variability in Results: Manual correction processes can introduce operator-dependent variations, though skilled craftsmen minimize this concern.
The Critical Balance
At DL Spring, we approach correction as a necessary tool, not a routine step. Our philosophy emphasizes getting it right the first time through superior coiling and grinding techniques, reserving correction for those instances where it genuinely adds value rather than compensates for upstream process deficiencies.
Best Practices to Minimize Correction Requirements
The most effective correction strategy is to minimize the need for correction in the first place. Here’s how leading spring manufacturers achieve this:
8.1 Design Optimization
Strategy: Work collaboratively with customers during the design phase to establish realistic tolerance requirements based on the spring’s actual functional needs.
Implementation:
- Avoid specifying unnecessarily tight tolerances on perpendicularity, pitch uniformity, or other parameters unless functionally critical
- Consider the spring’s end-use application—does a ±0.1mm tolerance on free height truly matter, or would ±0.3mm function equally well?
- Use standard tolerance grades (DIN 2095, JIS B 2704) as starting points rather than custom specifications
Result: Reduced correction requirements while maintaining full functional performance.
8.2 Material Quality Control
Strategy: Source spring wire with consistent mechanical properties and minimal variation in tensile strength, elastic modulus, and surface quality.
Implementation:
- Establish relationships with premium wire suppliers who provide materials with tight property specifications
- Implement incoming material inspection protocols including tensile testing and dimensional verification
- Maintain traceability of material lots to identify and eliminate problematic batches
Result: More predictable spring behavior during coiling and heat treatment, reducing dimensional variation.
8.3 Advanced Coiling Techniques
Strategy: Invest in modern CNC coiling equipment and advanced manufacturing processes with precise pitch control, consistent tension, and automated quality monitoring.
Implementation:
- Use computer-controlled coiling machines with closed-loop feedback systems
- Ensure consistent coiling angles on both end coils to promote uniform perpendicularity
- Maintain uniform pitch distribution during the coiling process
- Control free height through precise coil count and pitch programming
- Implement in-process monitoring to detect and correct drift before large batches are affected
Result: Springs that emerge from coiling already close to final specifications.
8.4 Precision Grinding Methods
Strategy: Optimize grinding operations to maximize perpendicularity and end-surface flatness.
Implementation:
- Maintain grinding wheel condition through regular dressing and replacement
- Use appropriate wheel specifications for the spring material and wire diameter
- Control grinding depth and feed rates to prevent excessive heat generation
- Employ proper work-holding fixtures that support springs during grinding without distortion
- Consider dedicated perpendicularity grinding stations for critical applications
Result: Spring ends that meet perpendicularity and surface finish requirements without correction.
8.5 Process Capability Analysis
Strategy: Continuously monitor and improve manufacturing process capability (Cp and Cpk values).
Implementation:
- Conduct regular statistical process control (SPC) studies on critical spring dimensions
- Identify root causes of variation and implement corrective actions
- Train operators on best practices and the importance of consistency
- Invest in precision measuring equipment and climate-controlled quality labs
Result: Processes that consistently produce springs within specification, reducing correction frequency.
DL Spring’s Commitment to Quality and Precision
At Cixi Dili Spring Co., Ltd., quality isn’t just a buzzword—it’s the foundation of everything we do. Our approach to spring correction exemplifies our broader commitment to excellence:
Our Quality Philosophy
We believe that correction should be the exception, not the rule. While we maintain expert correction capabilities for those instances where it genuinely adds value, our primary focus is on upstream process excellence that produces springs right the first time.
Comprehensive Manufacturing Capabilities
Our facility produces a complete range of spring types:
- Mold Springs: JIS standard and US standard springs for precision molding applications
- Compression Springs: From miniature springs in electronic devices to heavy-duty industrial springs
- Torsion Springs: Custom-designed solutions for rotational applications
- Extension Springs: Precision extension springs with various hook and loop configurations
- Music Wire Springs: High-fatigue performance springs for demanding applications
- Custom/Specialty Springs: Complex geometries, exotic materials, and unique specifications
Quality Assurance Protocols
Every spring undergoes rigorous inspection:
- Dimensional verification: Free height, outer diameter, wire diameter, pitch
- Load testing: Verification of spring rate and load at specified heights
- Perpendicularity measurement: Laser or mechanical indicator measurement
- Surface inspection: Visual and magnified inspection for defects, coating quality, and finish
- Material verification: When required, material composition and hardness testing
Correction Process Standards
When correction is necessary, we follow strict protocols:
- Assessment: Detailed measurement to identify specific parameters requiring adjustment
- Tool Selection: Choosing appropriate correction tools based on spring geometry and material
- Controlled Application: Incremental correction with frequent re-measurement
- Stress Relief: When appropriate, heat treatment and post-processing to relieve residual stresses introduced during correction
- Final Verification: Complete dimensional and functional testing post-correction
- Documentation: Recording correction parameters for continuous improvement analysis
Conclusion: The Art and Science of Spring Perfection
Spring correction is far more than a simple adjustment process—it represents the intersection of materials science, mechanical engineering, and skilled craftsmanship. While modern manufacturing strives to minimize correction requirements through process excellence, the ability to perform precise, controlled corrections remains an essential capability in producing springs that meet today’s demanding specifications.
The key takeaways:
- ✓ Correction is a valuable tool for achieving precision beyond standard manufacturing tolerances
- ✓ Proper correction requires understanding material behavior, appropriate tools, and skilled operators
- ✓ Balancing correction benefits against potential fatigue performance impacts is crucial
- ✓ The best correction strategy is minimizing the need through design optimization and process excellence
- ✓ Expert correction capabilities distinguish quality manufacturers from the rest
At DL Spring, we’ve invested decades in perfecting both our primary manufacturing processes and our correction capabilities. Whether you need standard catalog springs or highly customized solutions with challenging specifications, our team combines technical expertise with hands-on experience to deliver springs that perform flawlessly in your application.
Frequently Asked Questions (FAQs)
1. Does spring correction affect the spring’s fatigue life?
Answer: It can, depending on the extent and method of correction. Controlled, minimal correction performed by skilled operators typically has negligible impact on fatigue life. However, excessive correction or improper technique can introduce stress concentrations and residual stresses that may reduce fatigue performance. At DL Spring, we carefully evaluate whether correction is appropriate for fatigue-critical applications and, when necessary, perform stress-relief heat treatments post-correction to minimize any adverse effects. For high-cycle applications, we prefer optimizing upstream processes to eliminate correction requirements entirely.
2. What’s the difference between correcting a spring and setting a spring?
Answer: These are distinct processes. Spring correction adjusts physical dimensions (diameter, pitch, perpendicularity, height) to bring them within specification. Spring setting (also called presetting or scragging) involves compressing a spring to its solid height (or beyond) repeatedly to stabilize its mechanical properties and “set” the final free height. Setting is performed to remove manufacturing-induced residual stresses and ensure the spring reaches stable dimensions, whereas correction addresses dimensional deviations. Most compression springs undergo setting as a standard process, while correction is only performed when needed.
3. Can all types of springs be corrected, or only compression springs?
Answer: While compression springs are most commonly corrected due to their critical dimensional requirements, other spring types can also undergo correction:
- Extension springs: Can be corrected for body length, hook positioning, and initial tension
- Torsion springs: Can have leg angles, body diameter, and leg lengths adjusted
- Wire forms: Complex wire forms may require correction of bend angles and dimensional relationships
However, each spring type requires specialized correction techniques and tools. Compression springs are most amenable to correction because their geometry allows controlled deformation without compromising functionality.
4. How do you determine if a spring needs correction versus being rejected?
Answer: This decision involves several factors:
Magnitude of deviation: Springs only slightly outside tolerance are good correction candidates; severely out-of-spec springs are typically rejected.
Parameter affected: Some parameters (free height, perpendicularity) are easier to correct than others (wire diameter, which cannot be corrected).
Application requirements: For fatigue-critical or high-stress applications, correction may be inappropriate even if technically feasible.
Cost-benefit analysis: Sometimes producing a new spring is more economical than correction.
At DL Spring, our quality team evaluates each situation individually, always prioritizing functional performance and long-term reliability over short-term cost savings.
5. What industries most commonly require corrected springs?
Answer: Industries with stringent dimensional requirements frequently benefit from correction capabilities:
Mold and Die Manufacturing: Mold springs require exceptional perpendicularity and precise free heights to ensure uniform load distribution and prevent mold damage.
Automotive: Valve springs, suspension springs, and precision fuel system springs often have tight tolerances requiring correction verification.
Aerospace: Where safety margins are critical and specifications are non-negotiable, correction ensures every spring meets exact requirements.
Medical Devices: Precision instruments and implantable devices demand springs with minimal dimensional variation.
Electronics: Miniature springs in connectors, switches, and battery contacts often require correction due to their small size and tight tolerances.
However, with DL Spring’s advanced manufacturing capabilities, we strive to meet these demanding specifications without correction whenever possible, ensuring optimal performance and reliability.
Ready to Experience Precision Spring Manufacturing?
Whether you need standard compression springs, custom torsion springs, or specialized mold springs with challenging tolerances, Cixi Dili Spring Co., Ltd. combines advanced manufacturing technology with traditional craftsmanship to deliver springs that perform flawlessly.
Contact Our Spring Experts Today:
📧 Email: [email protected]
📱 WhatsApp: +86 13586942004
Let’s discuss your spring requirements and discover how our precision manufacturing and expert correction capabilities can solve your toughest design challenges.
